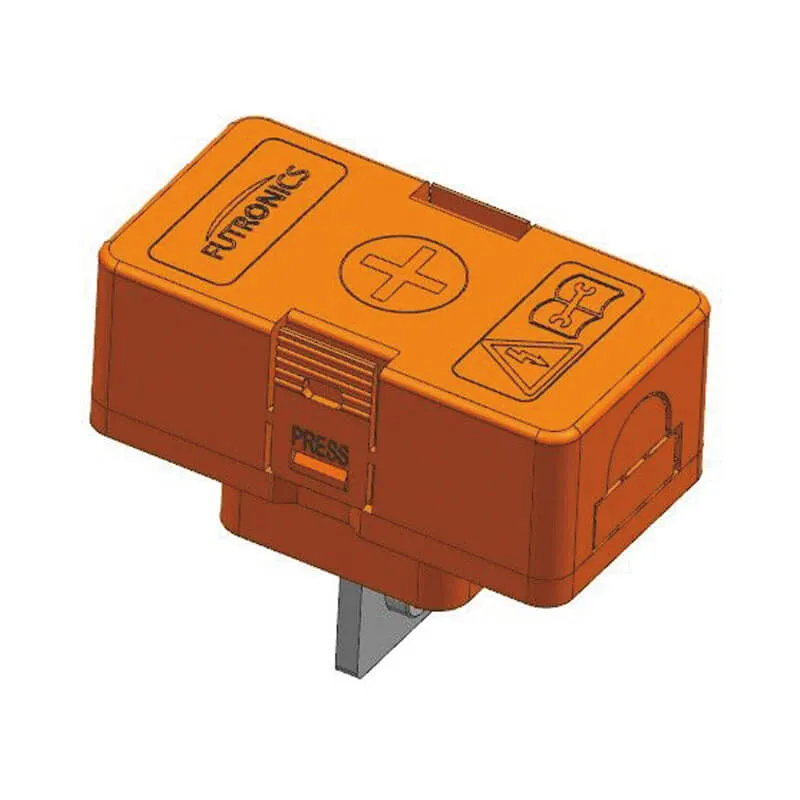

It is mainly used for the high voltage current transmission on electric vehicle by line method, such as battery box and PDU connection.
| Rated Current | 500A |
| Rated Voitage | 1500V |
| Insulation Resistance | 5000MΩ （@25℃ 40%~60%） |
| Test Voitage | Fire rating: UL94-V0 |
| Minimum Mating Cycles | 500 times |
| Wire Range | Adapted copper plate: 30×5/30×410 |
| IP Degree | IPXXB (Mated) |
| Operation Temperature | 25℃，5%~95% |
| Salt Spray Resistance | 48H |
| USCAR-2 |
