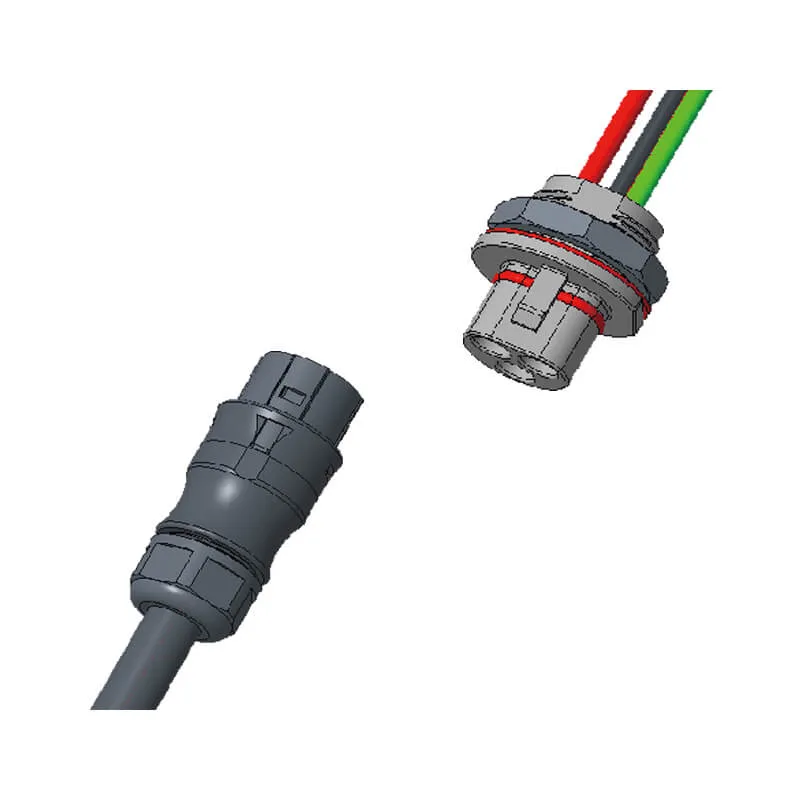

Outdoor waterproof connectors for photovoltaic inverters.
| Rated Current | 32A MAX |
| Rated Voitage | 300V AC |
| Insulation Resistance | 5000MΩ (@25℃） |
| Test Voitage | 6000V |
| Minimum Mating Cycles | 500 times |
| Wire Range | Power: 4mm²~6mm²
Signal: 20AWG |
| IP Degree | IP68 |
| Operation Temperature | -40℃~90℃ |
| Salt Spray Resistance | 96H (mating state） |
| EN 61984;2009 |
