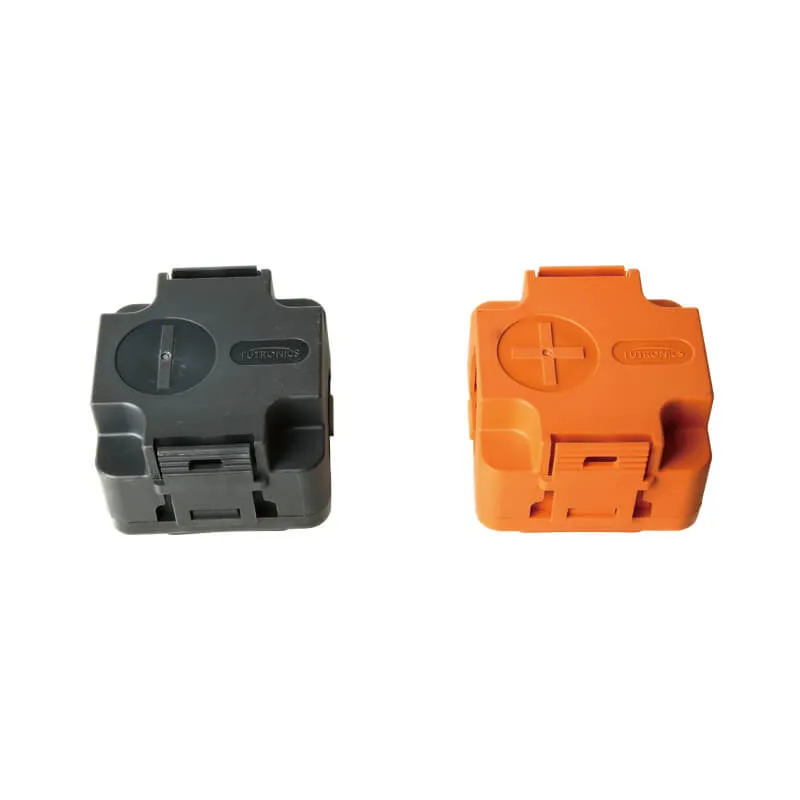

The rated voltage of the FPBOX series is 1500VDC, the rated current of the 200A series is 200A, and the rated current of the 300A series is 300A. The FPBOX series comes in two colors: C(orange) and H(black). It is suitable for energy storage scenarios. the rated current is 200A/300A respectively.
| Rated Current | 300A MAX |
| Rated Voitage | 1500V |
| Temperature class | -40℃~125℃ |
| Fire rating | UL94-V0 |
| Minimum Mating Cycles | 10 years |
| Wiring Range | 21*3mm/21*2mm |
| Use relative humidity | at 25 ℃,5% to 95% |
| Degree of protection | IPXXB (Mated) |
| Salt Spray Resistance | 48H(SST) |
| USCAR-2 |
| USCAR37 |
| TUV UL1977 CE |
