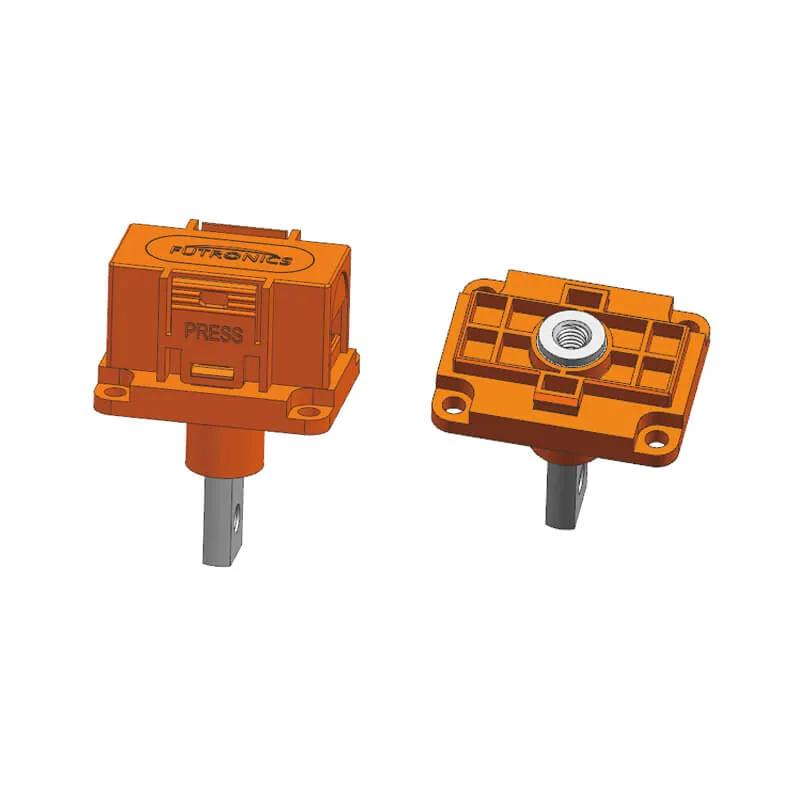

This product is an injection molded plastic connector with the characteristics of easy installation, economical cost, and good at the same timeGood electrical, mechanical and environmental performance, basically can meet the different needs of customers.
| Rated Current | 150A |
| Rated Voitage | 1500V DC |
| Insulation Resistance | 5000MΩ MIN
(@25℃ 40%-60%RH) |
| Test Voitage | 4500V AC
5000V DC |
| Minimum Mating Cycles | 500 times |
| Wire Range | Power: 50mm² |
| IP Degree | IPXXB (Mated) |
| Operation Temperature | -40℃~125℃ |
| Salt Spray Resistance | 48H (mating state) |
| UL-4128 |
