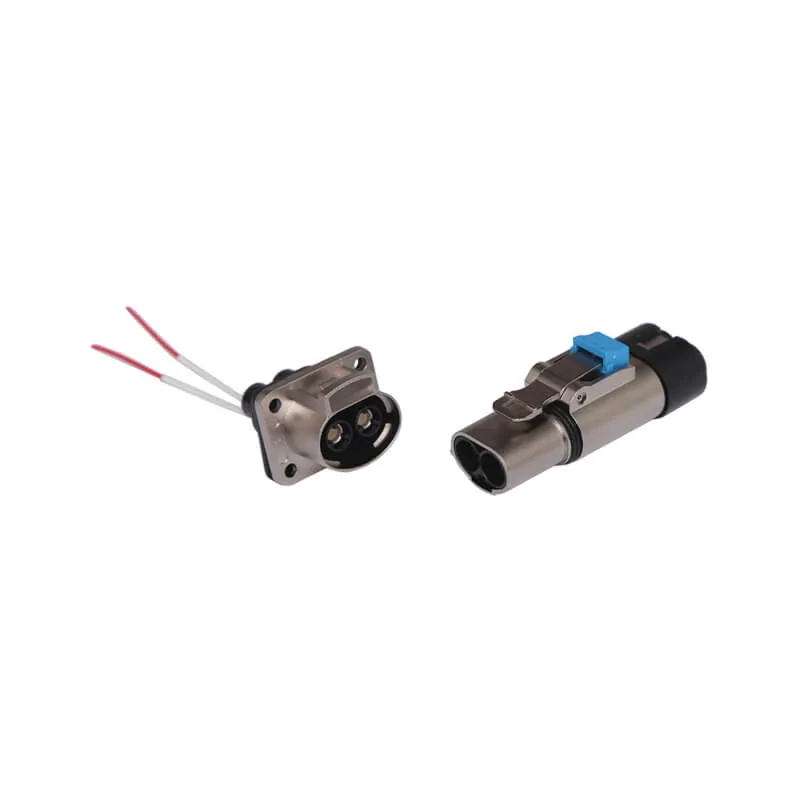

This product was widely used in electrical vehicle field for high-voltage, high current transmission between devices such as DC / DC, charging and distribution box, etc.
| Rated Current | 70A MAX |
| Rated Voitage | 1000V |
| Insulation Resistance | 5000MΩ(@25℃ 40%-60%RH) |
| Test Voitage | 3000V |
| Minimum Mating Cycles | 500cycles |
| Wire Range | 2.5mm²~10mm² |
| IP Degree | IP68(mated) |
| Operation Temperature | -40℃~125℃ |
| Salt Spray Resistance | 48H |
| USCAR-2 |
| USCAR-37 |
| RoHS |
| LV215 |
