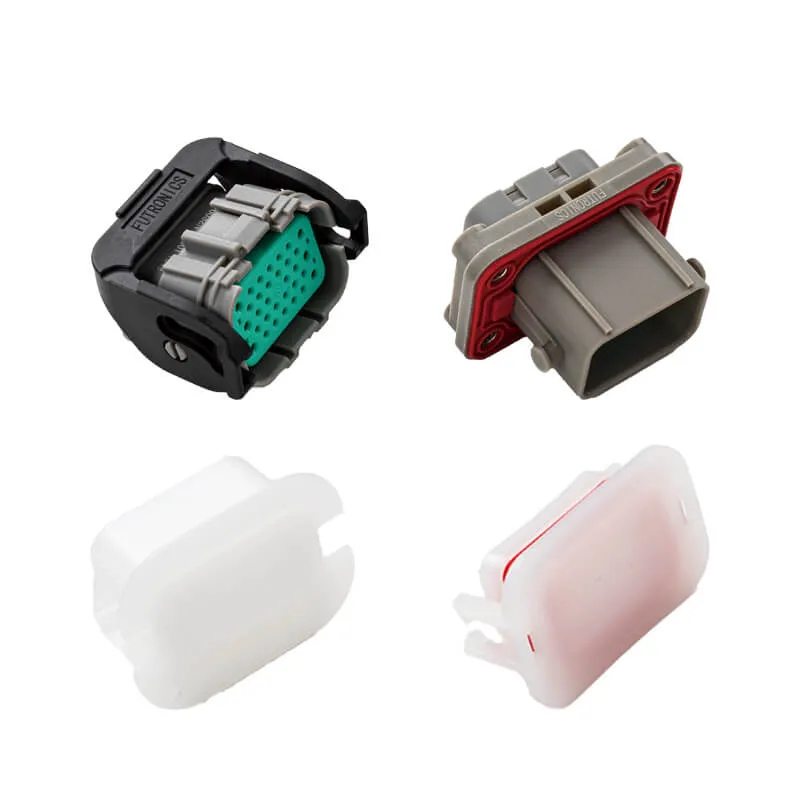

The product is the vehicle plastic signal connector, the product is used for the signal transmission between the vehicle charger, battery pack, high voltage distribution box, motor controller, motor, air conditioner, PTC, battery and other components
| Rated Current | Power:13A Max
Signal:5A Max |
| Rated Voitage | DC500V |
| Insulation Resistance | 5000MΩ MIN( Drying) 200MΩ MIN(RH 95%) |
| Test Voitage | 3000V AC |
| Minimum Mating Cycles | 500 |
| Wire Range | 0.35mm²~1.5mm² |
| IP Degree | IP67 |
| Operation Temperature | -40℃~125℃ |
| Salt Spray Resistance | 144H(mating state） |
| USCAR-2 |
| USCAR-37 |
