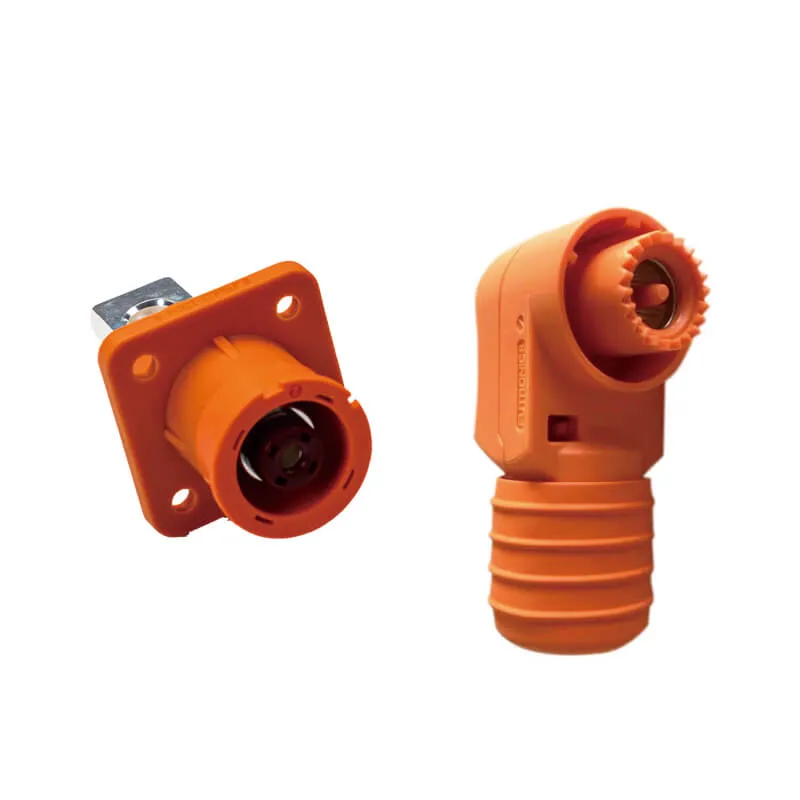

The product is energy storage plastic connector, which is used for high-voltage connection between components such as energy storage cabinet, energy storage station, mobile energy storage vehicle, photovoltaic power station, etc.
| Rated Current | 400A/480A |
| Rated Voitage | 1500V |
| Insulation Resistance | 5000MΩ MIN( Drying) 200MΩ MIN(RH 95%) |
| Test Voitage | 4000VAC |
| Minimum Mating Cycles | 500 |
| Wire Range | 120mm²~150mm² |
| IP Degree | IP54B |
| Operation Temperature | -40℃~125℃ |
| Salt Spray Resistance | 144H |
| USCAR-2 |
| USCAR37 |
