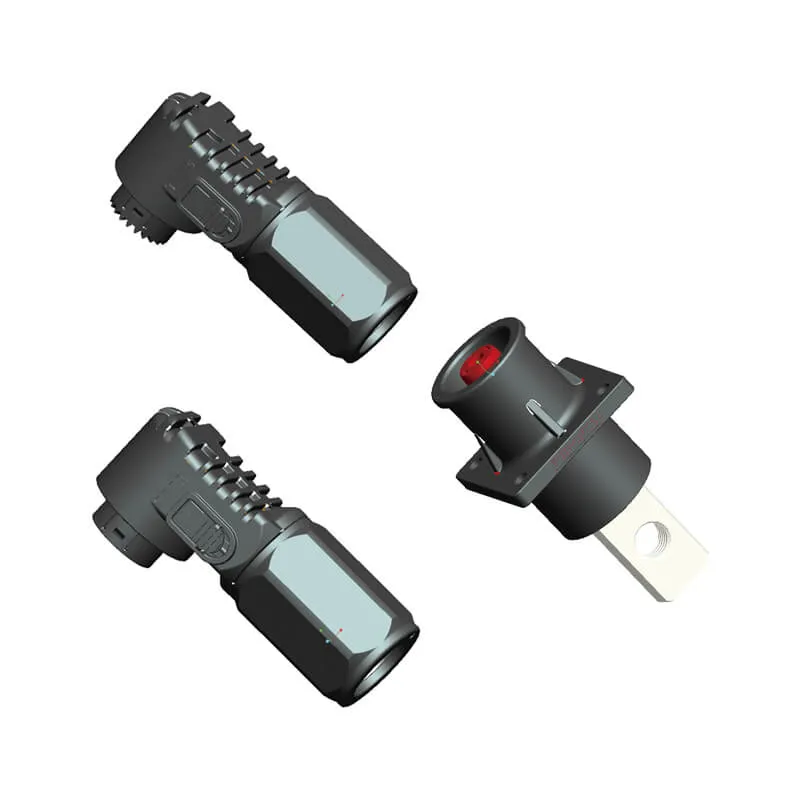

The product is energy storage plastic connector, which is used for high-voltage connection between components such as energy storage cabinet, energy storage station, mobile energy storage vehicle, photovoltaic power station, etc.
| Rated Current | TUV: 300A/350A/400A UL350A |
| Rated Voitage | TUV DC 1500V UL:DC 2000V |
| Insulation Resistance | 5000MΩ MIN( Drying) 200MΩ MIN(RH 95%) |
| Test Voitage | TUV: 6800V AC
UL: 8400V AC |
| Minimum Mating Cycles | 500 |
| Wire Range | TUV: 70mm²/95mm²/120mm²
UL: 4/0AWG |
| IP Degree | IP67B |
| Operation Temperature | -40℃~125℃ |
| Salt Spray Resistance | 144H |
| UL4128 |
