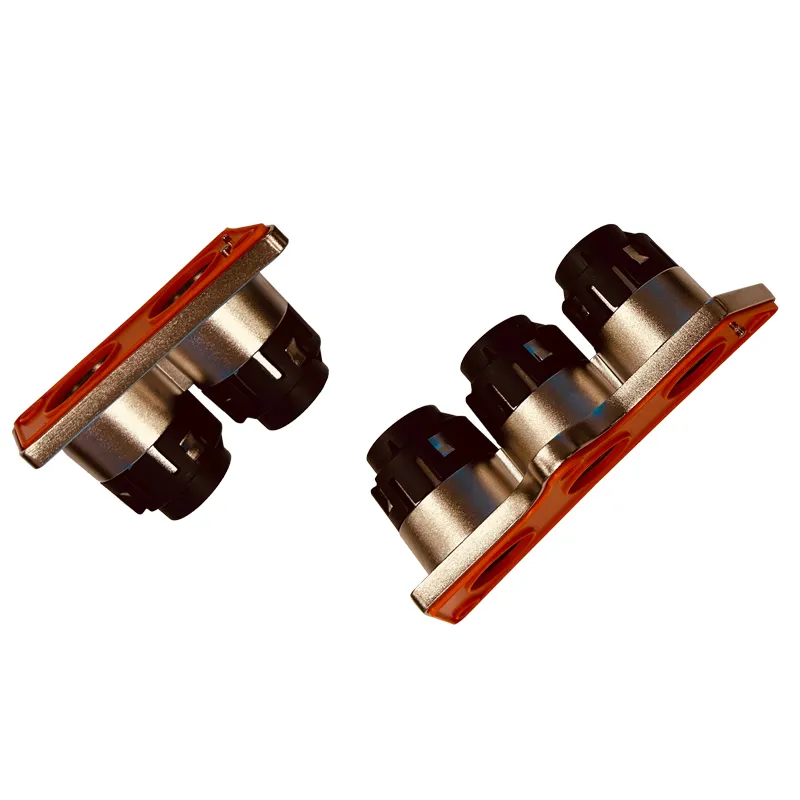

The product is vehicle mounted high-voltage plasticconnector, which is used for high-voltage connection between components such as vehicle charger, battery pack, high-voltage distribution box, motor controller, motor, air conditioner, PTC, battery, etc
| Rated Current | 250A/300A/350A |
| Rated Voitage | 1000V DC |
| Insulation Resistance | 5000MΩ MIN( Drying) 200MΩ MIN(RH 95%) |
| Test Voitage | 5000V AC |
| Minimum Mating Cycles | 500 times |
| Wire Range | 50mm²~95mm² |
| IP Degree | IP67 |
| Operation Temperature | -40℃~125℃ |
| Salt Spray Resistance | 72H/480H (optional） |
| USCAR-2 |
