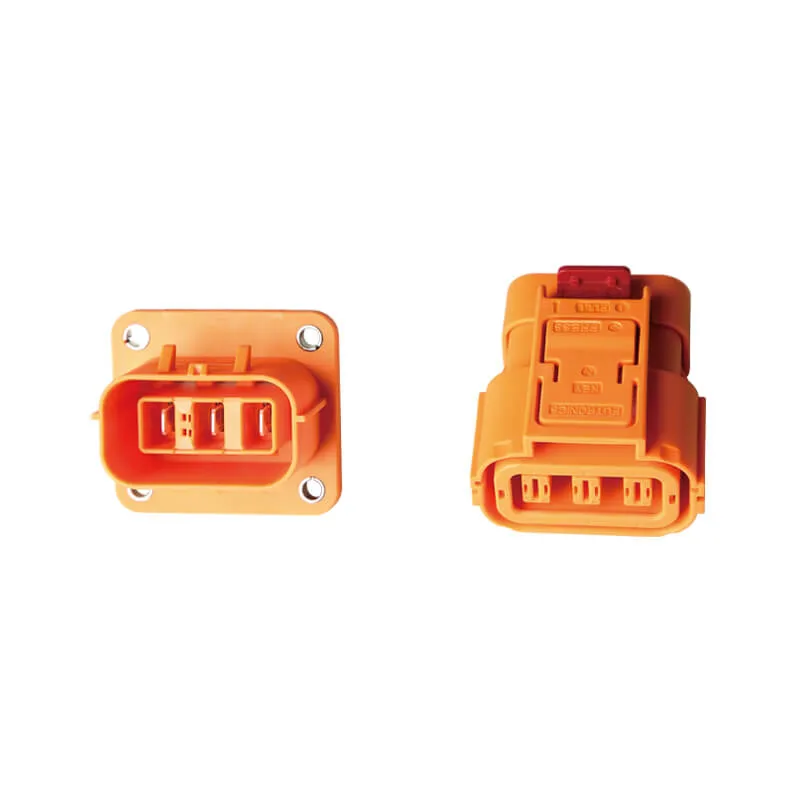

The product is vehicle mounted high-voltage plastic connector, which is used for high-voltage connection between components such as vehicle charger,battery pack, high-voltage distribution box, motor controller motor, air conditioner, PTCbattery, etc.
| Rated Current | 20A/30A/40A |
| Rated Voitage | DC1000V |
| Insulation Resistance | 5000MΩ MIN( Drying) 200MΩ MIN(RH 95%) |
| Test Voitage | 3000V AC/4800V DC |
| Minimum Mating Cycles | 500 times |
| Wire Range | 2.5mm²~6mm² |
| IP Degree | IP67B |
| Operation Temperature | -40℃~125℃ |
| Salt Spray Resistance | 144H |
| USCAR-2 |
| USCAR-37 |
