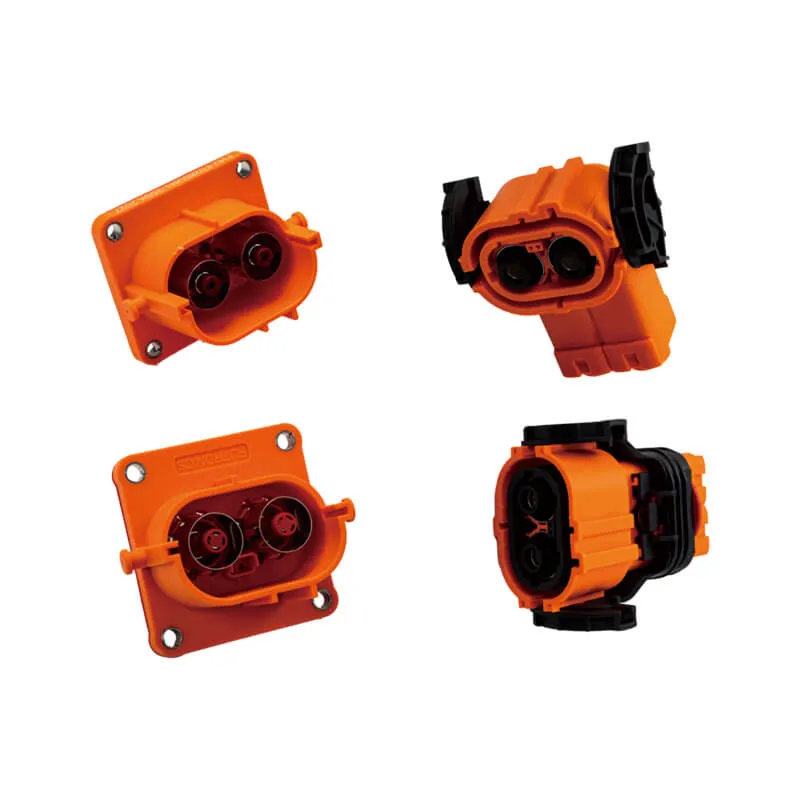

The product is vehicle mounted high-voltage plastic connector, which is used for high-voltage connection between components such as vehicle charger, battery pack, high-voltage distribution box, motor controller, motor, air conditioner,PTC, battery, etc.
| Rated Current | 80A/125A/150A |
| Rated Voitage | 1000V |
| Insulation Resistance | 5000MΩ MIN( Drying) 200MΩ MIN(RH 95%) |
| Test Voitage | 3000VAC |
| Minimum Mating Cycles | 500 |
| Wire Range | 16mm²~35mm² |
| IP Degree | IP67B |
| Operation Temperature | -40℃~125℃ |
| Salt Spray Resistance | 144H |
| USCAR-2 |
| USCAR-37 |
