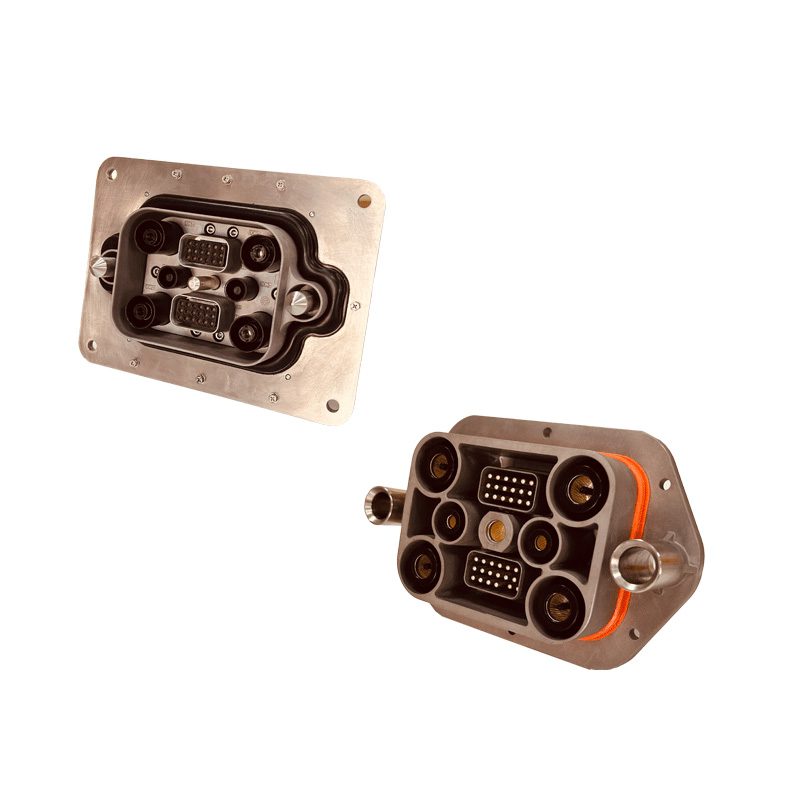

The rated current of FFH series floating connector ranges from 200A to 400A, with a wide application range and 1500V rated voltage.
| Rated Current | 400A/DC (high voltage) (maximum) |
| Rated Voitage | 1500V/DC (high voltage)
300V/DC (low voltage signal) |
| Insulation Resistance | 5000MΩ/1000V
(High voltage, normal state) |
| Test Voitage | 4000V/AC, 60s, no breakdown flashover,
Leakage current ≤ 2mA (excluding cables) |
| Minimum Mating Cycles | 20000 times |
| Wire Range | Power: 35mm²~95mm²
Signal: 0.5mm²~1.5mm² |
| IP Degree | IP67 |
| Operation Temperature | -40℃~85℃ |
| Salt Spray Resistance | 480H |
| GB/T 20234.1 |
| GB/T 32879 |
| GB/4209 |
| GB/T 30512 |
| GB/T 11918.1 |
