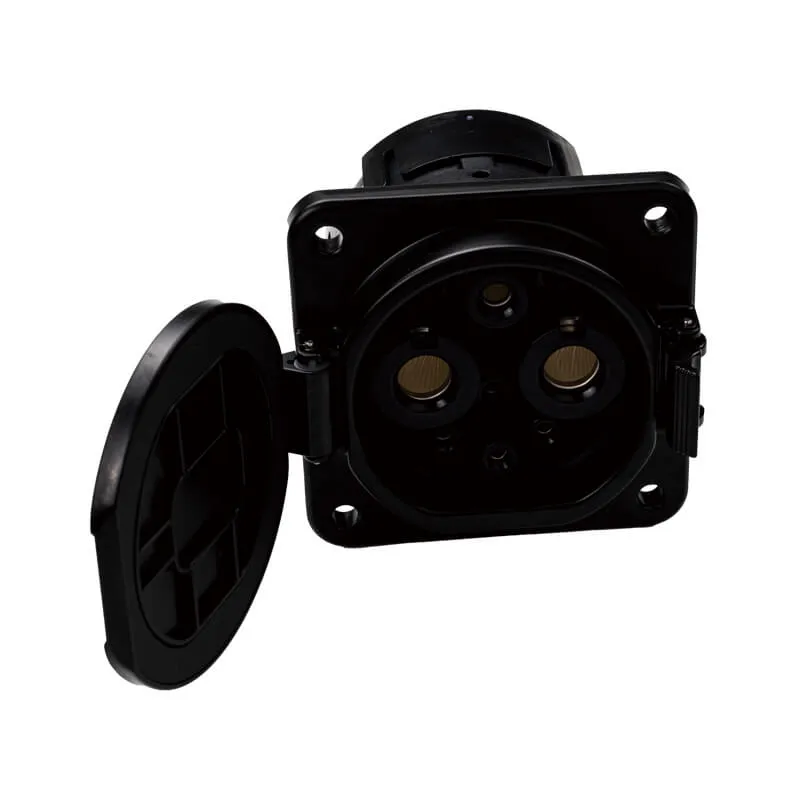

The product is on-board Chinese standard DC socket, in line with GB20234-2015,GB18487-2015 code, used in charging connection of EV.
| Rated Current | 80A/125A/200A/250A |
| Rated Voitage | 750VDC/1000VDC |
| Insulation Resistance | 5000MΩ MIN( Drying) 200MΩ MIN(RH 95%) |
| Test Voitage | 3000VAC |
| Minimum Mating Cycles | 10000 |
| Wire Range | Power terminal: 25MM², 35MM², 50MM², 70MM² |
| IP Degree | IP55 (after insertion)/IP54 (cover up) |
| Operation Temperature | -40℃~125℃ |
| Salt Spray Resistance | 144H |
| GB20234 |
| GB18487 |
