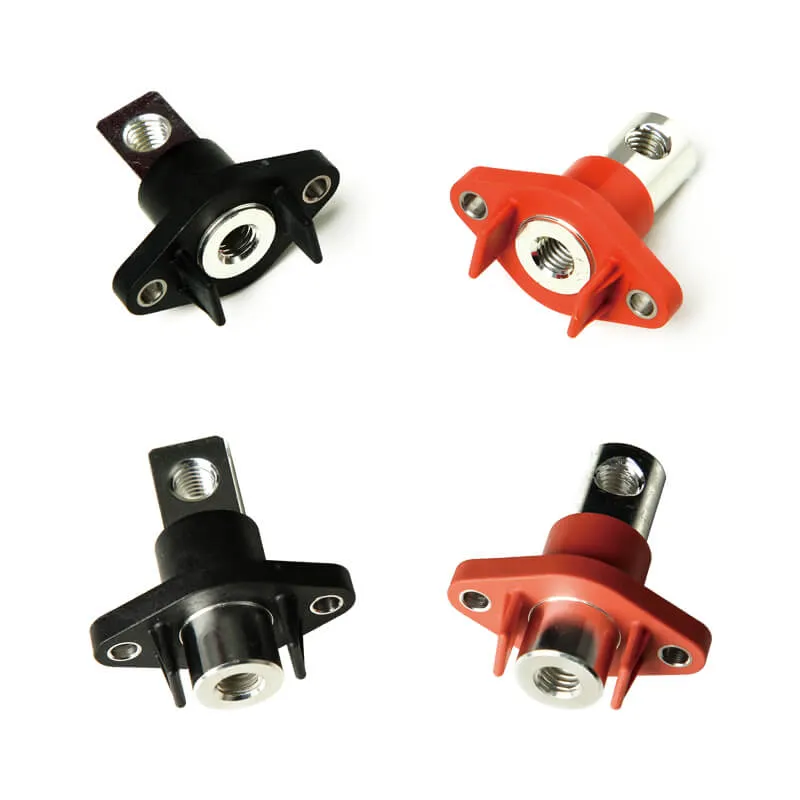

Electric energy transmission: battery to inverter, battery tobattery.
| Rated Current | 120A~250A |
| Rated Voitage | 1000V |
| Insulation Resistance | 5000MΩ MIN( Drying) |
| Test Voitage | 3000V AC |
| Minimum Mating Cycles | 100 |
| Wire Range | 25mm²/70mm² |
| IP Degree | IP55/IP68 |
| Operation Temperature | -40℃~125℃ |
| Salt Spray Resistance | 48H (mating state） |
| Rohs |
| USCAR-2 |
| TUV.CE |
