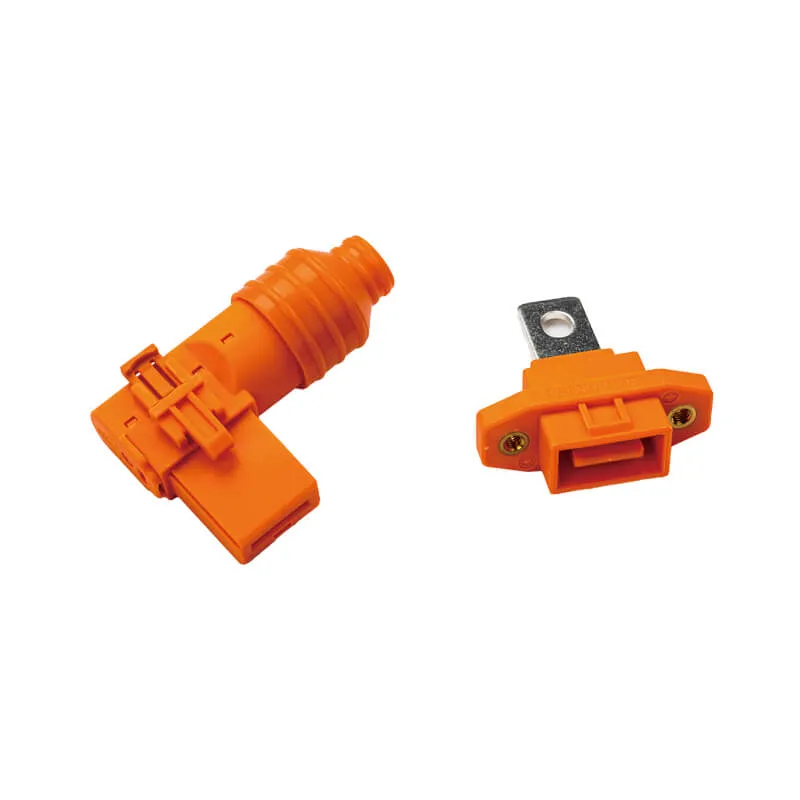

The product is energy storage plastic connector, which is used for high-voltage connection between components such as energy storage cabinet, energy storage station, mobile energy storage vehicle, photovoltaic power station, etc
| Rated Current | 80A/120A/150A/200A |
| Rated Voitage | 1000V |
| Insulation Resistance | 5000MΩ MIN( Drying) 200MΩ MIN(RH 95%) |
| Test Voitage | 3000V AC |
| Minimum Mating Cycles | 500 |
| Wire Range | 16mm²~50mm² |
| IP Degree | IP20B |
| Operation Temperature | -40℃~85℃ |
| Salt Spray Resistance | 48H |
| USCAR-2 |
| USCAR37 |
