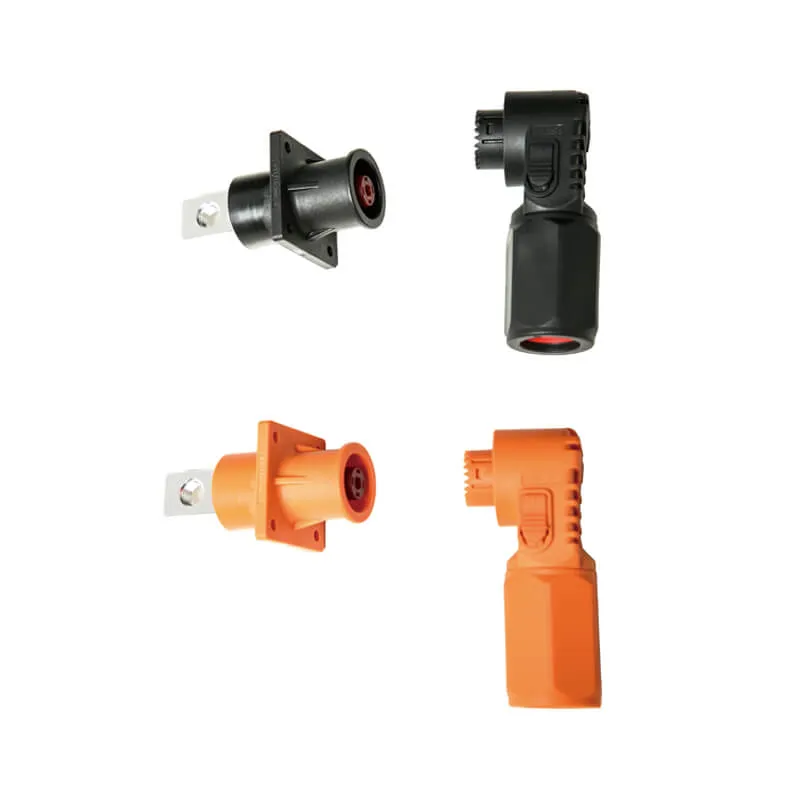

The product is energy storage plastic connector, which is used for high-voltage connection between components such as energy storage cabinet, energy storage station, mobile energy storage vehicle, photovoltaic power station, etc
| Rated Current | TUV:150A/200A/250A
UL:200A/250A |
| Rated Voitage | UL/TUV: 1500V DC |
| Insulation Resistance | 5000MΩ MIN( Drying) 200MΩ MIN(RH 95%) |
| Test Voitage | 6800V AC |
| Minimum Mating Cycles | 500 |
| Wire Range | TUV:35mm²/50mm²/70mm²
UL:1/0AWG;2/0AWG |
| IP Degree | IP67B |
| Operation Temperature | -40℃~125℃ |
| Salt Spray Resistance | 144H |
| UL4128 |
