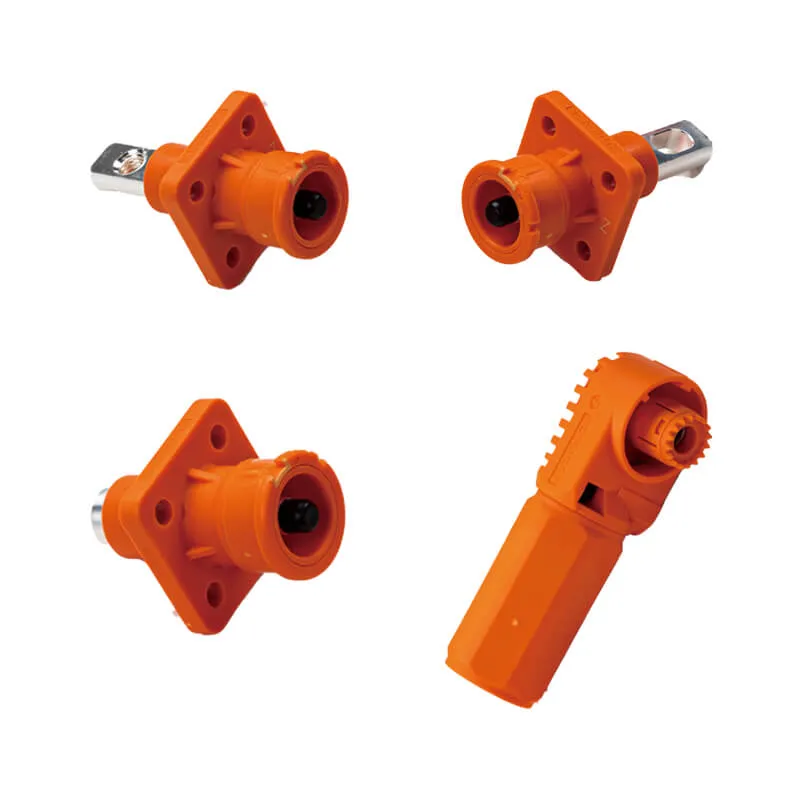

The product is energy storage plastic connector, which is used for high-voltage connection between components such as energy storage cabinet, energy storage station, mobile energy storage vehicle, photovoltaic power station, etc.
| Rated Current | 100A/125A |
| Rated Voitage | TUV DC600V |
| Insulation Resistance | 5000MΩ MIN( Drying) 200MΩ MIN(RH 95%) |
| Test Voitage | TUV 2210V AC |
| Minimum Mating Cycles | 500 |
| Wire Range | 16mm²~25mm² |
| IP Degree | IP67B |
| Operation Temperature | -40℃~125℃ |
| Salt Spray Resistance | 144H |
| TUV 2pfG 2740-04.20 |
| USCAR-2 |
| USCAR37 |
