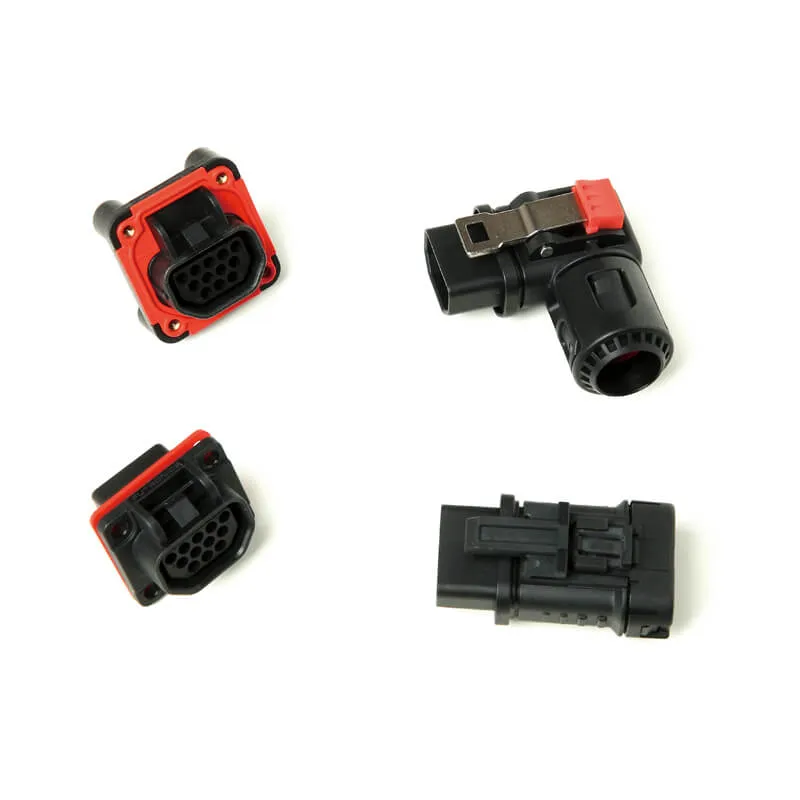

The product is vehicle connector, which is used for the connection between electric vehicle or electric motorcycle parts
| Rated Current | 5A |
| Rated Voitage | 500V DC |
| Insulation Resistance | 5000MΩ MIN( Drying) 200MΩ MIN(RH 95%) |
| Test Voitage | 2000V AC
3000V DC |
| Minimum Mating Cycles | Machined terminal 5000 times
Stamped terminals: 500 times |
| Wire Range | Signal：20AWG |
| IP Degree | IP67 mated |
| Operation Temperature | -40℃~125℃ |
| Salt Spray Resistance | 144H (mating state） |
| USCAR-2 |
