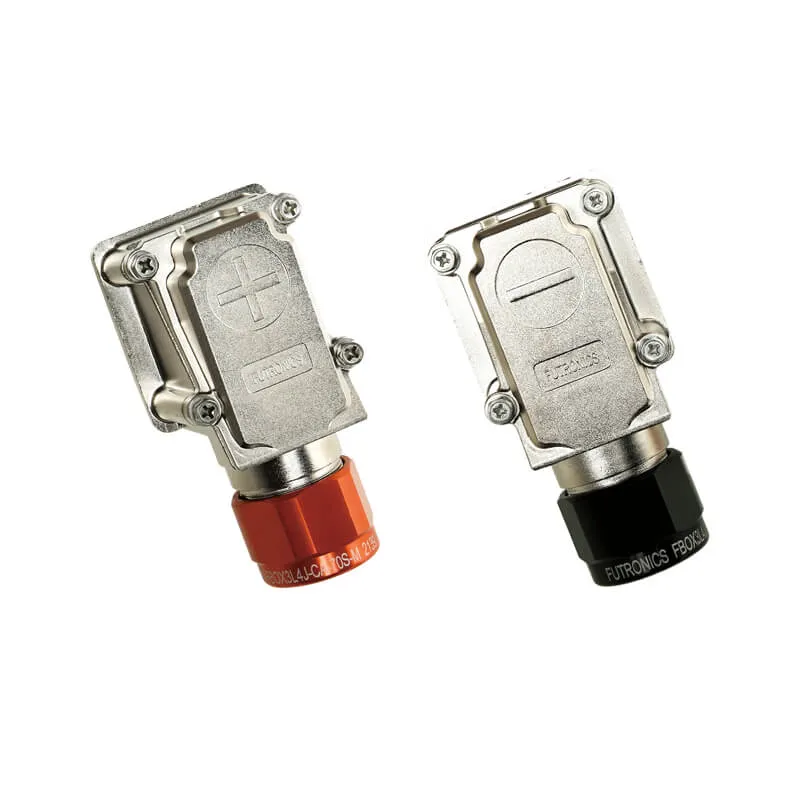

It is mainly used for the high voltage current transmission onelectric vehicle by line to line method, such as battery box and PDU connection.
| Rated Current | 300A MAX |
| Rated Voitage | 1000V |
| Insulation Resistance | 5000MΩ(@25℃ 40%-60%RH) |
| Test Voitage | 3000VDC |
| Minimum Mating Cycles | 500cycles |
| Wire Range | 50mm²~95mm² |
| IP Degree | IP68(mated) |
| Operation Temperature | -35℃~70℃ |
| Salt Spray Resistance | 48H |
| USCAR-2 |
| USCAR-37 |
| RoHS |
| LV215 |
